Multi-function Power Meter

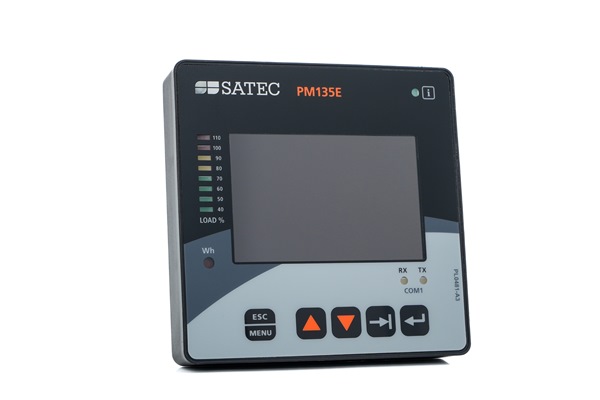

The PM135 is a multifunctional three-phase power meter.
Featuring versatile I/O options, communication ports and protocols, it is ideal for integration in utility substations or industrial SCADA systems.
An LCD display, accompanied by a LED load-bar, enables easy on-site access to power parameters and viewing of load percentage at a glance.
Accuracy: Class 0.5/0.5S per ANSI / IEC 62053-22
Communication
- Built-in: RS485
- Optional ports: ETH; Wi-Fi; cellular; Profibus
- Open protocol: Modbus RTU; DNP3.0
- IEC 60870-5-101/104
Digital & Analog I/O
up to 16 I/O
Broad-range measurement
- Voltage: 15-828V AC (direct, L-L)
- Frequency: 25, 50, 60, 400 Hz
Multi-option Current Inputs
- 5A or 1A
- 40mA for HACS CTs (100-3,000A)
- Special input: clip-on 5A HACS for retrofit
LED Bar-graph: Displays load as percentage of nominal current
Accuracy
- Class 0.5/0.5S accuracy per ANSI C12.20 / IEC 62053-22
- Class 0.2 per IEC 61557-12
Power Meter
- Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
- Ampere/Volt demand meter
- 25, 50, 60 and 400 Hz measurements
- Sampling frequency: 128 samples per cycle
Variable Current Inputs
Available options:
- 5A
- 1A
- HACS: special 40mA inputs for SATEC’s High Accuracy Current Sensors
- RS5: Special 5A input for 5A clip-on HACS for retrofit installation on existing MV/HV CT secondary.
Harmonic Analyzer
- Voltage and current THD, TDD and K-Factor,
- Voltage and current harmonic spectrum and angles, up to the 40th order harmonic
Modular I/O
Available modules:
- 4 Digital Inputs + 2 digital outputs (SSR or EM)
- 12 Digital Inputs + 4 Digital Outputs (including additional com port of choice)
- 8 Digital Inputs
- 4 Analog Outputs (for Smart Transducer application)
Variable Current Inputs
Available options:
- 5A (mandatory for MID)
- 1A
- HACS: special 40mA inputs for SATEC’s High Accuracy Current Sensors
- 63A Direct Measurement
- RS5: Special 5A input for 5A clip-on HACS for retrofit installation on existing MV/HV CT secondary.
Programmable Logical Controller
- Embedded programmable controller
- 16 control set points; programmable thresholds and delays
- Relay output control (for alarm and protection)
- 1-cycle response time
TOU Meter
Time-of-Use billing and logging:
4 totalization and tariff energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day
Display
- 3×2” / 76x49mm backlit LCD display
- Adjustable display brightness and update rate
- Auto-scroll option with adjustable page; autoreturn to a default page
- LED bar-graph displaying load as percentage of
nominal load current (user-definable)
Real-time Clock
- Built-in clock and calendar functions
- 2 year battery backup
Communication Interfaces
Built-in:
- Standard 2-wire RS-485
Add-on Com Modules (1 per device):
- Multipurpose RS-232/422/485 port
- ETH 10/100Base-T
- PROFIBUS
- 2G/3G/4G modem
- Wi-Fi module
Communication Protocols
- Modbus RTU/TCP
- ASCII
- DNP 3.0/TCP
- IEC 60870-5-101/104
Power Supply
Available options:
- Auxiliary multi-purpose AC/DC power supply (85-265V AC, 88-290V DC)
- Special versions (12, 24-48V DC)
Meter Security
Three-level Password security for protecting meter setups and accumulated data from unauthorized changes
Mounting
Panel-mount:
- 92×92mm square
- 4” round cutout
Current Input Rating Options
- 5A for CT secondary
- 1A for CT secondary
- 40mA input for HACS remote CTs
- RS5: 5A split core HACS remote sensor (50/60Hz only)
PM135P: Power Version
- Power meter and transducer offering advanced specifications (see Specs)
- Metered parameters include: voltage, current, power and frequency
PM135E: Energy Only
- Power meter and transducer offering advanced specifications (see Specs)
- Metered parameters include: voltage, current, power and frequency
- PLUS: Energy measurements and data logging (available in certain regions only)
PM135EH: Energy & Harmonic Version
All PM135E specifications and features, including energy metering and individual harmonics analysis up the 40th order harmonic.
Plug-In Modules
The PM13X modular approach enables users to assemble a system that meets their specific needs.
Dimensions (HxWxD):
- Small form: 2.8×1.8×1.3″ / 72×46×34 mm
- Large form: 3.7×3×1.7″ / 95×77×45 mm
Second Communication port - Small Form
One of the following:
- Ethernet (TCP/IP)
- PROFIBUS
- RS232/422/485
- 2G/3G/4G
- Wi-Fi
Analog Outputs - Small Form
4 analog outputs
selection of range upon order:
- ±1mA
- 0-20mA
- 0-1mA
- 4-20mA
- 0-5mA
- ±5mA
6 Digital I/O - Small Form
- 4 Digital Inputs (Dry Contact) / 2 Relay Outputs 250V / 5A AC
- 4 Digital Inputs (Dry Contact) / 2 SSR Outputs 250V / 0.1A AC
8 Digital Inputs
8 Dry Contacts, internally wetted @ 24V DC
16 Digital I/O - Large Form
- 12 Digital Inputs (Dry Contact or 250VDC)
- 4 Relay Outputs 250V/5A AC
- Optional selection of additional ETH, RS-485 or Profibus com port in module
