DC Metering

New: DC Metering & DC Power Monitoring

DC metering measures energy in direct-current systems — solar PV, energy storage, EV charging, telecom and DC data-center architectures — where conventional AC meters do not apply. SATEC provides a dedicated platform for accurate DC monitoring and DC revenue billing, based on the PRO series adapted with UHACS for direct-current applications.

DC power systems

Many modern power systems incorporate DC technology. Direct current is generated by renewable energy systems, used in energy storage, and applied in areas such as power transmission and aluminum smelting.

Because many electronic devices operate internally on DC power, some systems—including certain data center architectures—use DC distribution to reduce the number of power-conversion stages.

SATEC offers a dedicated platform for accurate monitoring and metering across a wide range of DC applications.

The PRO series

Using Hall-effect sensors, SATEC has adapted the PRO series for direct current metering. This brings the series’ high-accuracy measurement, advanced data logging, and communication capabilities to a wide range of DC applications.

Key capabilities include:

  • Measurement of up to four DC current circuits with a single device
  • Support for IEC 61850
  • Built-in Ethernet interface

SATEC also offers accessories for powering the sensors and extending the supported DC voltage range. Together, these components provide an accurate and flexible solution for DC metering.

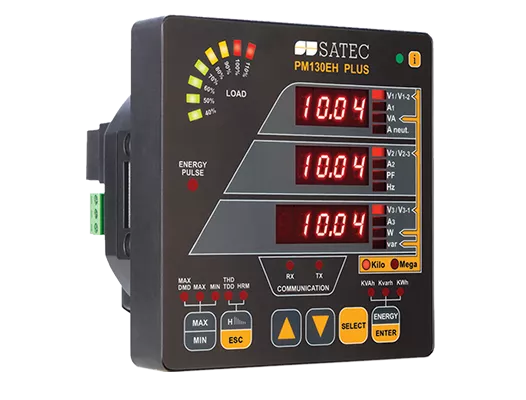

SATEC PM130E PLUS power meter

The PM130

Using shunt resistors, the PM130 provides a cost-effective DC metering solution for retrofit applications where shunts are already installed. This configuration is commonly used in telecommunications facilities.

 DC metering is the measurement of energy in direct-current circuits, such as solar strings, batteries, EV chargers and telecom systems. It is used where standard alternating-current meters cannot be applied.

AC meters measure alternating current, which has voltage, current, frequency and phase angle. DC circuits have none of those beyond voltage and current, so DC metering uses different sensing — SATEC measures DC current with UHACS to achieve accurate readings.

Yes. DC metering monitors the DC side of a PV system, at string or inverter level, to track production, performance and yield.

Typical applications include solar PV, EV charging, telecom (-48 V systems), battery and BESS energy storage, and DC data-center architectures.

SATEC has adapted the PRO series for DC metering using UHACS, measuring up to three DC current circuits with a single device, with IEC 61850 support and a built-in Ethernet interface.

IEC 62053-41:2021 applies to static watt-hour meters for the measurement of DC electrical energy in DC systems, in accuracy classes 0.5 and 1.

Key benefits

High-accuracy DC energy meteringAccurate measurement of DC voltage, current, power and energy for monitoring, accounting and performance analysis.
Multi-channel monitoringMeasure up to three independent DC circuits with a single PRO DC meter, reducing hardware requirements and cost per measurement point.
Bidirectional energy measurementMonitor DC energy flow in both directions, particularly valuable for battery charging and discharging applications.
Flexible voltage and current rangesCombine UHACS sensors and VRM modules to accommodate different DC system requirements.
Retrofit-friendly solutionsDedicated PM130 PLUS shunt-input configurations support installations with existing current shunts.
System integrationEthernet, Modbus and IEC 61850 communication capabilities on supported PRO DC configurations allow integration with SCADA, EMS and other monitoring platforms.

Standards & compliance

SATEC PRO DC metering configurations support IEC 62053-41:2021 Class 0.5, the highest accuracy class specified by this standard, with NMi certification for approved configurations.

In addition to the certified accuracy class, SATEC has validated 0.15% DC energy measurement accuracy for the complete measurement chain, including the PRO meter, Voltage Ratio Module (VRM) and UHACS current sensor, under defined test conditions.

SATEC PRO meters also support industrial communication protocols, including Modbus and IEC 61850, depending on the selected configuration.

Meter selection for revenue billing or settlement applications must consider the applicable legal metrology approvals, voltage range and project-specific requirements.

Typical applications

Solar PV SystemsMeasure DC voltage, current, power and energy at selected DC feeders or inverter inputs to monitor DC yield and assess inverter conversion performance when combined with AC-side measurements.

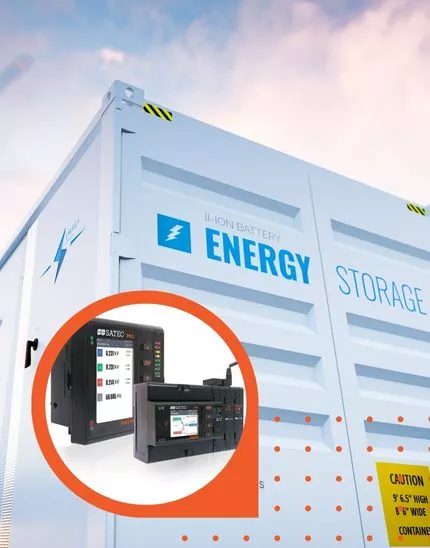

Battery Energy Storage Systems (BESS)Measure battery-side DC energy during charging and discharging, support energy accounting, and compare DC and AC measurements to evaluate PCS efficiency.
EV Charging InfrastructureMonitor DC charging energy, power and electrical performance at suitable measurement points. Commercial billing applications are subject to applicable metrology requirements.
Telecommunications (-48 VDC)Monitor rectifier systems, battery banks and DC distribution loads, including retrofit applications using existing current shunts.
Industrial DC SystemsMeasure energy and power in industrial DC distribution, rectifier systems, electrochemical processes and other high-current DC applications.
DC Data Center ArchitecturesMonitor DC voltage, current, power and energy in emerging 800 VDC-class distribution systems, subject to the approved meter voltage range and installation configuration.
