Power Meter & Transducer

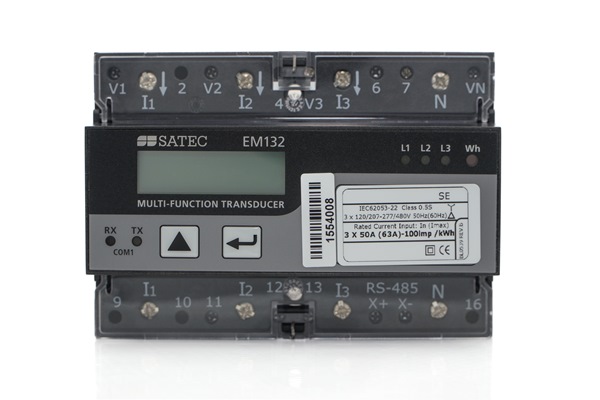

SATEC EM132 is a multifunction power meter and transducer, ideal for a wide range of applications such as industrial power monitoring and for interfacing SCADA in utility substations. The EM132 can be fitted with a wide range of communication interfaces and I/O extensions, making it a cost-effective combination of a power meter, smart transducer and PLC controller. It is designed for DIN-rail mounting, equipped with built-in communication ports, digital I/Os and anti-tamper enclosures.

Accuracy: Class 0.5/0.5S per ANSI / IEC 62053-22

  • Built-in: RS485 (optional: built-in Dual Port RS485)
  • Optional ports: ETH; Wi-Fi; cellular; Profibus
  • Open protocol: Modbus RTU; DNP3.0
  • IEC 60870-5-101/104

Digital & Analog I/O

  • Built-in I/O: 1 RO; 2 DI
  • Modular I/O: up to 16 I/O
  • Smart Transducer: 4 analog outputs

Broad-range measurement

  • Voltage: 15-828V AC (direct, L-L)
  • Frequency: 25, 50, 60, 400 Hz

    Multi-option Current Inputs
  • 5A or 1A
  • 63A direct connection
  • 40mA for HACS CTs (100-3,000A)
  • special input: clip-on 5A HACS for retrofit

Power Meter

  • Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
  • Ampere/Volt demand meter
  • 25, 50, 60 and 400 Hz measurements
  • Sampling frequency: 128 samples per cycle

Variable Current Inputs

Available options:

  • 5A
  • 1A
  • HACS: special 40mA inputs for SATEC’s High Accuracy Current Sensors
  • 63A Direct Measurement
  • RS5: Special 5A input for 5A clip-on HACS for retrofit installation on existing MV/HV CT secondary.



  • 2 Digital Inputs
  • 1 form A digital output (Solid State Relay)

Modular I/O (available options):

  • 4 Digital Inputs + 2 digital outputs (SSR or EM)
  • 12 Digital Inputs + 4 Digital Outputs (including additional com port of choice)
  • 8 Digital Inputs
  • 4 Analog Outputs (for Smart Transducer application)

(see Module tab for detailed spec)

Programmable Logical Controller

  • Embedded programmable controller
  • 16 control set points; programmable thresholds and delays
  • Relay output control (for alarm and protection)
  • 1-cycle response time


  • 2 x 16 Characters LCD display; adjustable update time
  • Auto-scroll option with adjustable page exposition time; auto-return to a default page

Real Time Clock

  • Built-in clock and calendar functions
  • 2 year battery backup

Power Supply

Available options:

  • Self-powered from measured voltage (120/207 – 277/480V AC, L-N/L-L)
  • Auxiliary AC/DC power supply (85-265V AC, 88-290V DC)
  • Special versions (12, 24-48V DC)

Communication Ports


  • Standard 2-wire RS-485 (optional: built-in Dual Port RS485)

Add-on Com Modules (1 per device):

  • Multipurpose RS-232/422/485 port
  • ETH 10/100Base-T
  • 2G/3G/4G modem
  • Wi-Fi module

Communication Protocols

  • Modbus RTU/TCP
  • DNP 3.0/TCP
  • IEC 60870-5-101/104

Meter Security

  • Three-level Password security for protecting meter setups and accumulated data from unauthorized changes
  • Anti-tamper design (wiring seal)


DIN Rail sealable connection

Plug-In Modules

The EM132 modular approach enables users to assemble a system that meets their specific needs.

Module Dimensions (HxWxD):

  • Small form: 2.8×1.8×1.3″ / 72×46×34 mm
  • Large form: 3.7×3×1.7″ / 95×77×45 mm


Second Communication port - Small Form

One of the following:

  • Ethernet (TCP/IP)
  • RS232/422/485
  • Wi-Fi
  • 2G/3G/4G
  • RF *
* Module & accessories available in certain regions only


4 Analog Outputs - Small Form

4 analog outputs
selection of ranges upon order:

  • ±1mA
  • 0-20mA
  • 0-1mA
  • 4-20mA
  • 0-5mA
  • ±5mA


6 Digital I/O - Small Form

One of the following:

  • 4 Digital Inputs (Dry Contact) + 2 Relay Outputs 250V / 5A AC
  • 4 Digital Inputs (Dry Contact) + 2 SSR Outputs 250V / 0.1A AC


16 Digital I/O - Large Form

  • 12 Digital Inputs (Dry Contact or 250VDC)
  • 4 Relay Outputs 250V/5A AC
  • Optional selection of additional ETH, RS-485 or Profibus com port in module


Standard model

Power meter and transducer offering all advanced specifications described in the Specs tab.


Offers all standard EM132 specifications and features, including:

an additional integral RS-485 com port (total of 2)
